Animal Classification With RPi Digicam For Survey & Monitoring



Searching continues to make many animal species extinct, and the governments are unable to do a lot besides introducing some legal guidelines and conducting common surveys. However conducting a survey shouldn’t be a straightforward activity, particularly with out the assistance of expertise.

The sensible digicam on this challenge makes use of Python code that has pre-trained TensorFlow fashions for forest monitoring and survey. The fashions assist us in matching and mapping the picture in body with the mannequin’s skilled information and thus in figuring out these animals.

The photographs of elephants being detected with the assistance of writer’s prototype is proven in Fig. 1. The writer’s prototype that makes use of a Raspberry Pi (or RPi) with a digicam module is proven in Fig. 2.

Elephants being captured by author’s prototype
Fig. 1: Elephants being captured by writer’s prototype

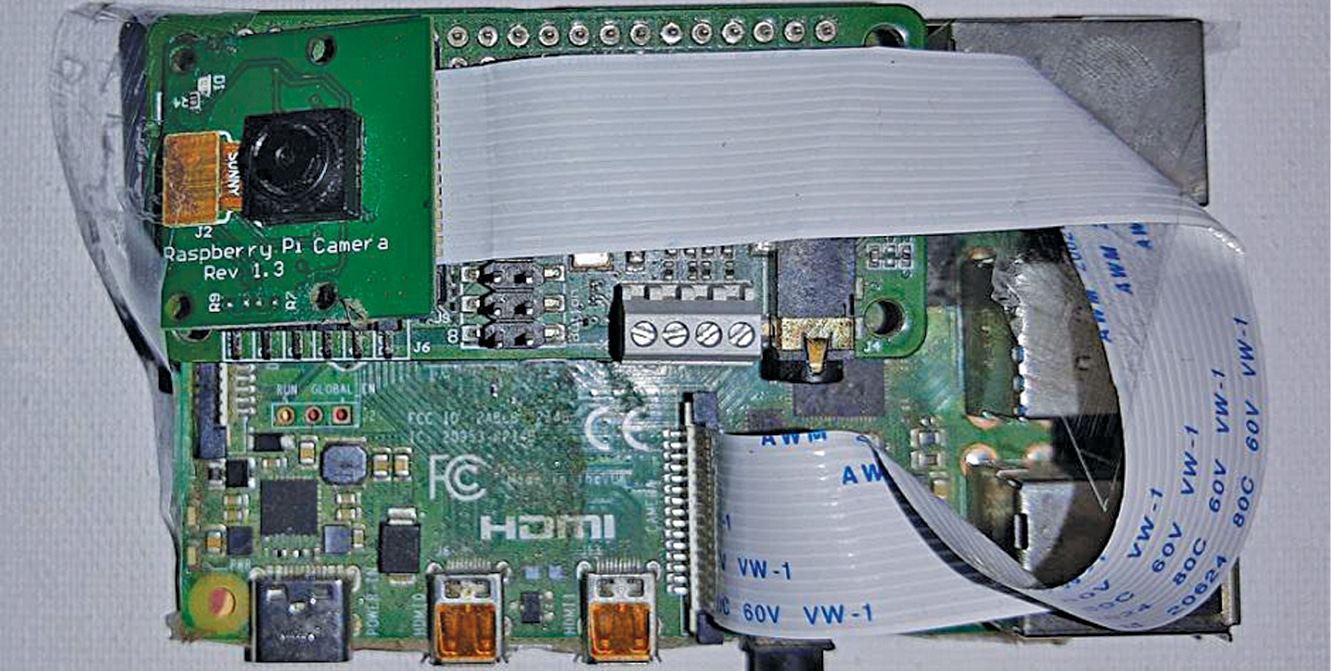

Author’s prototype
Fig. 2: Creator’s prototype

The Raspberry Pi captures a video picture utilizing the digicam, then utilizing the OpenCV module it cuts the video into frames. Subsequent, utilizing OpenCV and different modules, it processes the picture of detected species and maps it with a class and pre-trained detection mannequin. If the detected animal species shouldn’t be there within the class checklist, it offers the output as ‘none’ and saves that picture with information and timestamp in database folder in order that it may be studied later.

If the detected animal species matches with any of the animals listed in new.pbtxt database, it identifies the identify of the animal and saves it in textual content file forestdb.txt with time and date. It additionally saves the picture of that animal with a time stamp in one other folder for future reference.

On this manner the sensible digicam retains monitor and creates a database with photos of animals current in a forest. It may well additionally assist in learning animal behaviour and the presence and development of natural world within the forest.


It’s assumed that you’ve got Raspberry Pi (RPi) prepared with Raspbian OS and Python IDE and have entry to the RPi desktop both with VNC or HDMI based mostly show. (Be aware. We’re utilizing Python3 Atmosphere and the code is suitable with Python3 and above variations solely.) So, we might begin with the set up of modules and libraries for this challenge.
Open the Linux terminal in your Raspberry Pi and set up the required libraries utilizing following instructions:

sudo apt-get replace
sudo apt-get improve
sudo nano /and many others/dphys-swapfile

Change the road CONF_SWAPSIZE=100

Proceed with the next instructions:

sudo /and many others/init.d/dphys-swapfile cease
sudo /and many others/init.d/dphys-swapfile begin

sudo pip3 set up opencv
sudo pip3 set up numpy
pip3 set up dlib
pip3 set up tensorflow

After set up of the libraries utilizing above-mentioned instructions, you possibly can proceed with the cloning of TF modules, examples, and recordsdata utilizing the next instructions:

git clone
git clone

After efficiently cloning, go to the directory->research->object_detection-> file in Python IDE (see Fig. 3). Now perceive and alter the code.

Object_detection folder
Fig. 3: Object_detection folder

The primary a part of the code has the required library and modules, as proven in Fig. 4. We’ve to set the trail of the textual content file that has the class names of species/animals for detection. Right here we’ve set the class labels in New.pbtx file, as proven in Fig. 5. The subsequent a part of the code shops the output of detection lead to a string variable known as ‘NAME.’ Then we’ve the code that marks the detected picture identify with date and time.

Code with modules and libraries
Fig. 4: Code with modules and libraries
Defining path for the new label file
Fig. 5: Defining path for the brand new label file

Subsequent, we’ve a conditional assertion that checks the output results of detection. If the situation of the results of detection shouldn’t be ‘[ ]’ then it saves the consequence with date and time in a textual content file. The subsequent a part of the code saves the detected picture in ‘databasefolder’ folder. Right here you possibly can change the trail for picture storage as per your alternative (see Fig. 6) after which save the code.

Saving the detected image with timestamp in a defined path folder
Fig. 6: Saving the detected picture with timestamp in an outlined path folder

Go to the information folder and create a file named New.pbtxt (see Fig. 7) and label with IDs for various animal species for detection and show (see Fig. 8).

Creating file named New.pbtxt under data folder
Fig. 7: Creating file named New.pbtxt below information folder
Creating category of animals/species for display in New.pbtxt
Fig. 8: Creating class of animals/species for show in New.pbtxt

Obtain Supply Code: click on right here


After ending the coding half, join the digicam module to Raspberry Pi digicam port utilizing a ribbon cable, as proven within the prototype. Open the code in Python IDLE and run the script and anticipate a couple of minutes in order that it could load all of the tensor stream modules. This may open a brand new window with the digicam video output.

Deliver the digicam in entrance of the animal similar to a cow, sheep, and many others to be recognized. At any time when an animal seems within the digicam body, the detected picture shall be processed by the pc and saved in a textual content file. It’ll save that body within the databasefolder with date and timestamp. Animals captured by the digicam in photograph body are proven in Fig. 9.
Open the forestdb.txt file to see the checklist of species/animals detected together with time and date (see Fig. 10). If you wish to see the pictures/photos of these detected animals, open databasefolder and click on on every picture file having the date and time of seize (see Fig. 11).

Detected animals
Fig. 9: Detected animals
The contents of forestdb.txt file
Fig. 10: The contents of forestdb.txt file
The images of detected animals stored in databasefolder
Fig. 11: The photographs of detected animals saved in databasefolder
